By Kevin Custer

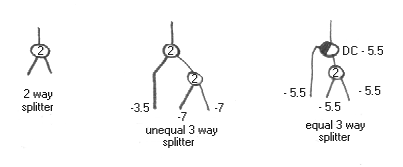

Splitter arrangements may seem complicated to some.  They really are not.  Here are some simple depiction's of common splitters.  These images will help you understand how they are employed in taps and so on.  Now you know why a 7-4 port tap is self terminating.


Copyright © 1999 Kevin Custer.
All rights reserved....
